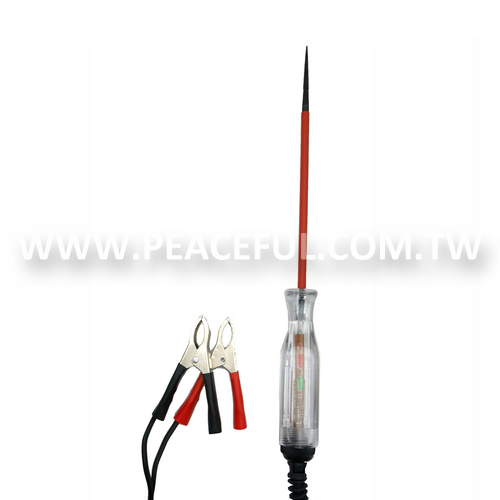

16476-24V LED Heavy Duty Circuit Tester

Descriptions:

Check on 6, 12 and 24V systems. Quickly and safely tests high and low voltages on all vehicle voltages, including computerized engine. High impedance protects sensitive electronic sensors, microprocessors, electronic ignition components and air bags.

Features:

  • High-impact plastic body.
  • Heavy-duty medium-carbon steel probe.
  • Probe length: Approximately 180mm / 7"
  • Dual color LED indicated red for power (high) and green for ground (low).
  • Connects the red lead to a power source and the black lead to a ground source.
  • 6' (1.8m) long heavy-duty 18 gauge dual leads with battery clips and spring strain relief.

Specifications:

VOLTAGE MEASUREMENT
VOLTAGE RANGE 6-24V
LED INDICATOR Red for Power (High)
Green for Ground (Low)
HEAVY-DUTY PROBE
MATERIAL Medium-Carbon Steel
LENGTH 180mm / 7"
INSTRUCTIONS
  1. Connect the RED to the "+" side of the battery circuit and the BLACK clip to the "-" side of the battery circuit.
  2. Touch the probe tip to the "-" (Ground) will cause the GREEN LED to brighten and the RED LED to go out.  Touch the probe tip to the "+" (6, 12 or 24 V) will cause the RED LED to brighten and the GREEN LED to go out.
